Wholesale ICT Power Module Supplier DC-DC isolated power supply with industry non-standard quarter-brick

TDQ06S24F-4 is a new generation isolated DC-DC power supply with industry non-standard quarter-brick structure, high efficiency and power density, low output ripple and noise. It has an input voltage range of 60V~160V and provides a rated output voltage of 24V and a maximum output current of 6A.It's designed for rapid transit industry.
send email to us

Products Details

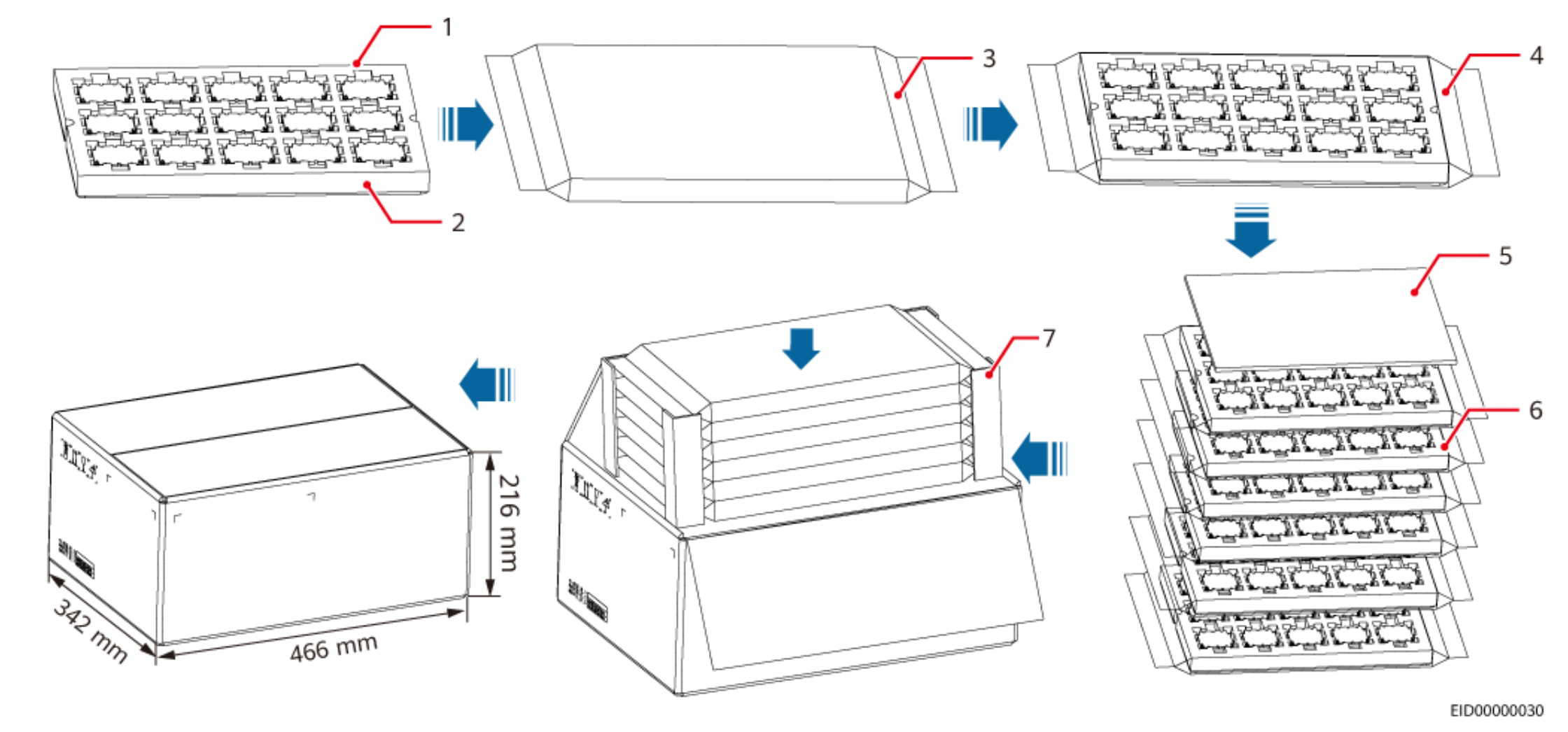

Features ● Efficiency: 91.0% (TB=25℃, Vin=110V, Vout=24V) ● Length×width×height：60.6mm×55.9mm× 12.7mm (2.39in. x 2.20in. x 0.50in.) Weight: ≤110g ● Input undervoltage protection, output overcurrent protection (hiccup mode), output short-circuit protection (hiccup mode) Output short-circuit protection (hiccup mode), output over-voltage protection (hiccup mode), output over-voltage protection (hiccup mode) Output over-voltage protection (hiccup mode), over-temperature protection (self-recovery) ● Support remote power on/off Compliant with UL 62368-1, IEC61373 and EN 50155 standards ● Compliant with RoHS6 standard The module is suitable for the electric power industry rail transportation industrial equipment Packing: 90pcs/ctn
