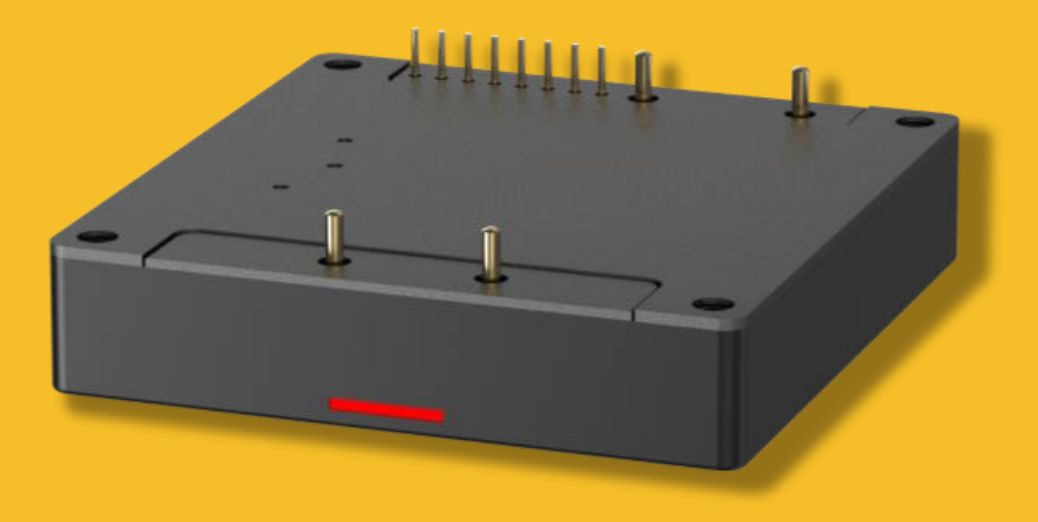

Features 200Vdc to 400Vdc Input Voltage Range 22.4Vdc ~ 30.8Vdc Output voltage range (Trim pin voltage adjustment supported) 900W rated power, maximum efficiency ≥ 94% Support parallel function (number ≤ 10) Temperature adaptation range: -40℃~100℃ (substrate) Support CAN communication protocol Package size: 1/2 brick (63mm×61mm×13mm) Weight ≤ 200g Heat dissipation method Baseboard heat dissipation Static power consumption ≤ 30W MTBF ≥1000000 h Dielectric strength Input-output: 3000Vac/ 4242VDC Input-substrate: 1768Vac/ 2500VDC Switching frequency 200KHZ Enable function Support enable control Output voltage regulation Support output voltage regulation (Trim) Protection function Input over-voltage protection, output over-voltage protection, output over-current short-circuit protection and over-temperature protection, can work normally after recovery Design specification:EN6236, IEC62368-1, GB4943
