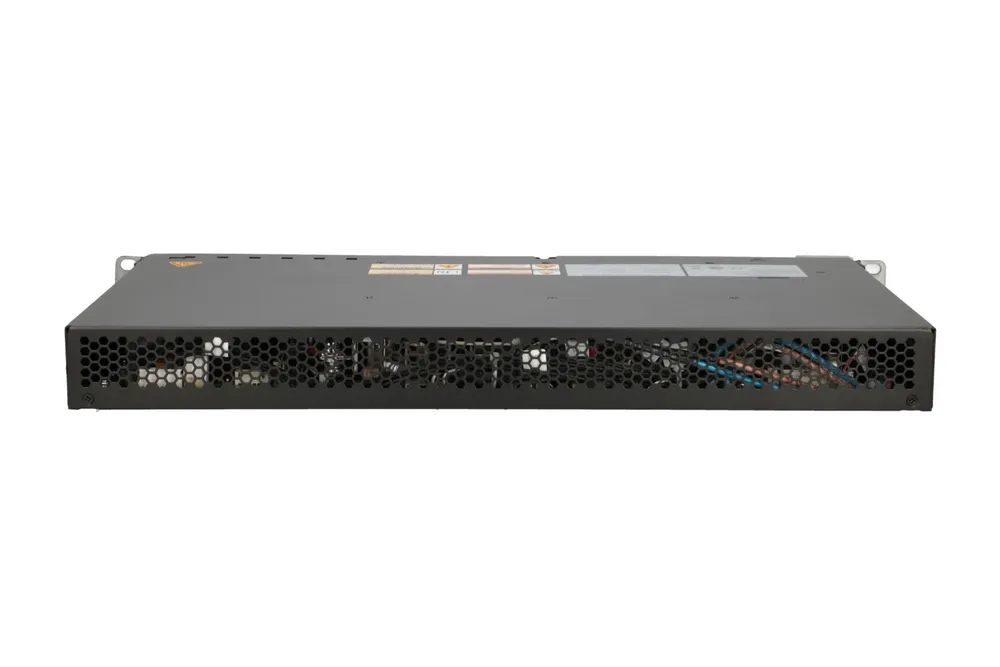

Huawei High-efficiency Embedded AC/DC Power ETP4860-B1A2 48V DC Hot-swappable Intelligent battery management

  • Huawei ETP4860-B1A2 embedded DC power supply system converts AC input into stable 48V DC output, supports 2kW (30A) rectifier module, and has a maximum output power of 4/10kW.
  • 85~300V AC ultra-wide AC voltage input range,supports high-voltage DC input 100~420V DC,support hot-swappable circuit breaker, flexible power distribution.
Huawei-ETP4860-B1A2-7

Products Details

Huawei Embedded AC/DC Power ETP4860-B1A2    Product description:
  • Each functional unit adopts standardized size design, supports hot swapping, the system height is 1/2U, and supports various installation methods such as standard 19-inch rack or embedded cabinet.
  • The system can adapt to a wide range of AC input and has functions such as intelligent battery management and remote monitoring.
  • TUV/CE/UL/CB/Tel certification;Safety regulations/EMC/ROHS/carbon emission report
Huawei-etp4860-b1a2-3Huawei-etp4860-b1a2-2 Feature:
  • 85~300V AC ultra-wide AC voltage input range.
  • Supports high-voltage DC input 100~420V DC.
  • Support hot-swappable circuit breaker, flexible power distribution.
  • Supports hot-swappable power modules for easy installation and maintenance.
  • Standard installation structure design, strong versatility.
  • The power supply has a compact structure, saving space and installation costs.
  • High-efficiency rectifier module efficiency is over 96%, saving energy and reducing emissions.
  • Complete module sleep function to further improve system efficiency.
  • Intelligent battery management and battery protection to extend battery life.
  • Supports environmental monitoring and remote management through dry contacts, serial ports or network interfaces.
  Specification--ETP4860-B1A2     Application scenarios:
  • Access Network
  • Transport network
  • Enterprise communications network
  • 48V DC power supply scenarios in various industries
